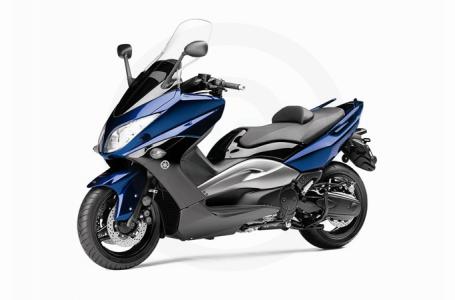

2009 Yamaha TMAX

Save $2500

Now until September 30, 2010
$2,500.00 Off MSRP
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

MAXIMUM SCOOTER.


Blurring the boundaries between scooter and motorcycle - a super sport automatic fuel-injected, liquid-cooled, four-valve per cylinder engine boasts, controlled-fill, die-cast aluminum frame, 43 mm front forks,4-piston caliper dual front disc brakes, and rear disc brake. Plus a multifunction instrumentation with speedometer and tachometer and radical sports styling and fuel economy up to an estimated 47 mpg with a fuel tank that holds 4 gallons.

    Key Features
    • Fuel-injected, liquid-cooled, four-valve-per-cylinder engine boasts forged pistons, carburized connecting rods, and ceramic-composite plated cylinders. The TMAX has a 11.0:1 compression ratio; upswept muffler canister; CF die-cast aluminum frame; 43mm front forks; 4-piston mono-block caliper dual front disc brakes; rear disc brake; aluminum die cast wheels with radial H-rated tires; fully featured multifunction instrumentation with speedometer and tachometer; and radical new sports styling; with those credentials, it’s no wonder TMAX is the Super Sport Scooter.
    • Horizontally positioned 499cc parallel twin, with reciprocating balancer, offers plenty of smooth power, enough for two-up touring at highway speeds. Configuration helps keep weight low in frame for mass centralization.
    • Luxury scooter appointments include a double glove box in the streamlined front apron, a position-adjustable operator backrest, a storage box under the seat spacious enough for a large full-face helmet, and the excellent wind and weather protection that comes from the TMAX’s floorboard/ apron/windshield configuration.
    • Continuously variable transmission connects engine power to the wet multiplate centrifugal clutch via a durable double-cog-type rubber V-belt. Silent chain efficiently transfers power to the rear wheel. This proven system, combined with TMAX’s ample power, gives a whole new meaning—and adrenaline level—to twist-and-go throttle operation.
    • The TMAX achieves fuel economy up to an estimated 47 mpg* with a fuel tank that holds 4 gallons of gas.
    Engine Features
    • DOHC, four-valve-per-cylinder, 499cc parallel twin, liquid-cooled engine is horizontally mounted and performance engineered with forged pistons, carburized connecting rods and ceramic composite plated cylinders for plenty of tractable power. Also includes a horizontally opposed reciprocating balancer for uncommon smoothness.
    • Lubrication is via a semi-dry-sump system with an oil cooler for longer engine life.
    • Continuously variable transmission connects engine power to the wet multiplate centrifugal clutch via a durable double-cog-type rubber V-belt. Pivot coaxial drive shaft is used, allowing use of a swingarm separate from the powerplant for excellent handling. Two-stage, adjustment-free silent chain system then transfers power to the rear wheel.
    • Muffler incorporates exhaust catalyst technology to reduce air pollution.
    • Fuel tank emission system includes a charcoal canister to control gasoline evaporation and reduce air pollution.
    Chassis/Suspension Features
    • Using technology proven in Yamaha’s sportbike line, TMAX has a lightweight, CF die-cast aluminum frame that provides rigidity and balance for superb handling.
    • Motorcycle-type telescopic front forks use beefy 43mm tubes.
    • 15-inch cast aluminum wheels front and rear are fitted with radial tires for excellent, sporty handling.
    • Front double disk brakes with four-pod mono block calipers.
    • Pin-slide, one pod rear brake caliper with parking brake system.
    • Brake lever is adjustable for operator comfort.
    • Rear seat is hinged for easy opening. Underseat storage is spacious enough to store a large full-face helmet.
    Additional Features
    • Electronic fuel-injection system provides sure starts and excellent performance in virtually all conditions and altitudes.
    • Bright, headlights and taillight take their styling cues from Yamaha sportbikes.
    Engine Specifications
    • Type: 499cc liquid-cooled 4-stroke, forwardinclined
    • Bore x Stroke: 66.0 x 73.0 mm
    • Compression Ratio: 11:1
    • Fuel Delivery: Electronic fuel injection
    • Clutch Type: Wet, multiple-disc automatic centrifugal
    • Ignition: Digital TCI
    • Transmission: CVT double-cog V-belt auto
    • Final Drive: V-belt
    Chassis Specifications
    • Suspension/Front: 43mm telescopic forks
    • Suspension/Rear: Swingarm
    • Brakes/Front: 267mm disc
    • Brakes/Rear: 267mm disc
    • Tires/Front: 120/70-15 67H Radial
    • Tires/Rear: 160/60-15 67H Radial
    Dimensions
    • Length: 86.4 in
    • Width: 30.5 in
    • Height: 56.9 in
    • Seat Height: 31.5 in
    • Wheelbase: 62.2 in
    • Ground Clearance: 4.9 in
    • Fuel Capacity: 4.0 gal
    • Fuel Economy: 47 mpg
    • Wet Weight: 489 lb
    Other
    • Warranty: 1 Year (Limited Factory Warranty)
    • Colors: Deep Blue, Cadmium Yellow
    NOTES:

    Price and specifications subject to change without notice. Please Read your Owner's Manual and all labels before operation.


    Fuel economy estimates are based on US EPA exhaust emission certification data obtained by Yamaha. Your actual mileage will vary depending on road condition, how you ride, maintain your vehicle, accessories, cargo and operator/passenger weight.


    Specifications

    Engine
    Engine Type 4-stroke, DOHC, four-valve-per-cylinder, parallel twin
    Displacement 499 cc
    Bore and Stroke 66.0 x 73.0 mm
    Cooling Liquid-cooled
    Compression Ratio 11:1
    Fuel System Electronic fuel injection
    Ignition Digital TCI
    Chassis
    Front Suspension 43 mm telescopic forks
    Front Brakes 267 mm disc
    Front Tire 120/70-15 67H Radial
    Rear Suspension Swingarm
    Rear Brakes 267 mm disc
    Rear Tire 160/60-15 67H Radial
    Storage Underseat storage
    Dimensions
    Dry Weight Wet Weight: 489 lbs
    Fuel Capacity 4.0 gal
    Wheelbase 62.2 in.
    Seat Height 31.5 in.
    Transmission
    Transmission CVT double-cog V-belt auto
    Drive System Final Drive: V-belt
    General
    Colors Deep Blue, Cadmium Yellow
    Warranty 1 Year (Limited Factory Warranty)
